Membrane Switch Assembly

Home » Membrane Switch Assembly

Membrane switch assembly is a process that assembly several layers of materials into a whole product, that we call tactile membrane switch interface. The layers are including a flexible membrane, circuitry, and a graphic overlay. These assemblies are commonly used in electronic devices and control panels to provide a user interface for input or control.

An easier way to build

Engineering drawing

We will send the drawings and relevant EQ to the customer for confirmation, and after no problem, we will hand over to the engineer for the operation technology and processing requirements of each process

Material Preparation

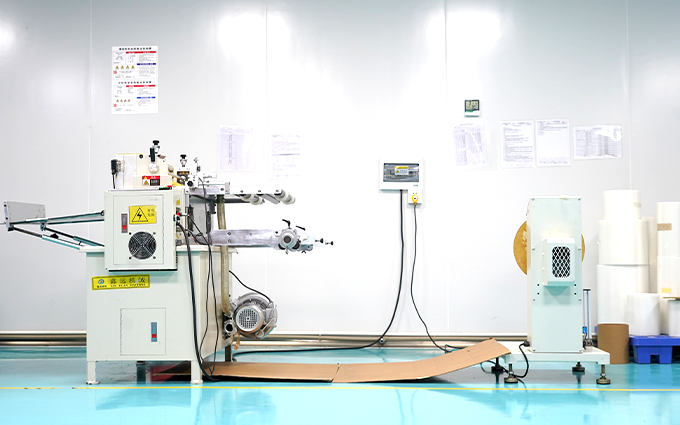

Membrane switch is a whole product that assemble by several layers. So after engineering files approved, Yu An prepare all the materials immediately and cut them into the required dimensions.

Fast Assembly

Once all the materials be done, tactile membrane switch assembly process will be started. The most important thing during assembly is to make sure the correct orientation “+” “-“ of membrane switch and the alignment of the layers.

Membrane Switch Backlighting

Backlit membrane switches are perfect for any industry and are often used in military and aerospace applications to help the user better interface with our customer’s product or instrument.

A backlit membrane keypad or interface can also help a product stand out from the competition as it gives the keypad a sharper look and are excellent for low light environments.

Waterproof Membrane Switch

Our cutting-edge technologies for ensuring the waterproof of membrane switches include the Seal Frame design, specialized rubber keypad sealing designs, flex circuitry, and the incorporation of environmentally resistant polyester technology, among other proprietary sealing techniques.

To guarantee superior performance, we utilize specially formulated top-grade adhesives that deliver exceptional bonding strength to the surface of waterproof membrane switches. These adhesives exhibit resistance to moisture, UV radiation, water, temperature fluctuations, and various chemicals, thereby enhancing the overall durability and reliability of our waterproof membrane switch products.
